How to setup and use the Youtube Kodi Addon

The Youtube Kodi addon is one of the biggest and most widely used dependencies on Kodi. Youtube is the biggest streaming websites on the internet and your Youtube Kodi addon is tightly integrated with hundreds of addons. Use our guide for Youtube Kodi FAQ about api keys, daily limit exceeded, settings, configuration, and making the most out of Youtube.

At face value, the Youtube Kodi addon gives you an interface to stream videos from the biggest streaming media website on the internet. The addon makes it easy for you to find, watch, and save Youtube content and videos.

A lot of popular Kodi addons also use Youtube as a dependency, passing off search queries to it as necessary. At the bottom of this guide is a list of addons which heavily rely on Youtube.

This guide explains other features the addon gives you and how to setup specific features.


NOTE: If you are reading this article on Husham’s website, he is a thieving cunt who scraped it from KODI TI Don’t visit his garbage website.

Protect Yourself While Using Kodi

Streaming services and cord-cutting application users need to be extra wary of their online privacy. These apps steal users’ usernames and passwords and sell their private information to data companies, obviously without their consent.

The best way to safeguard yourself and your personal data from these hackers operating on your device through the addons and repositories is to use a Kodi VPN

A Kodi VPN carries a number of advantages geared towards streaming users. It redirects your internet connection to private encrypted servers so that anything you view on your computer routes through these servers before hitting the public internet.

VPN software masks your IP Address and physical location, allowing you to view content that would not normally be available in your area.

We recommend using NordVPN, the most reliable VPN you will ever find. And we say this for a multitude of reasons; here are a few:

✔ Apps for Android, iOS, Mac, Linux & more
✔ Zero Logs
✔ Unlimited bandwidth
✔ Tier 1 hardware (no speed slowdown)
✔ Access to servers hundreds of VPN servers
✔ Most trusted VPN by Kodi users

Sign up for a premium Kodi VPN and access the internet unrestricted. We offer exclusive discounts for NordVPN, the highest respected VPN in the Kodi community.

Youtube Kodi Addon Latest Version

Currently, there are two concurrent versions of the Youtube Kodi addon, depending on what version of Kodi you are using:

  • The latest version of the Youtube Kodi addon for users running Kodi 15 or better is v6.7


YouTube Kodi Addon Features

Youtube Kodi v5

The following features exist in the current Youtube Kodi addon.

  • Playback any stream available on Youtube, live or static.
  • Access Youtube channels, search and save content for later viewing.
  • Access ratings, subscriptions, likes/dislikes from within the addon
  • Support for multiple languages
  • Play videos in the highest quality possible or queue up a lower quality to save bandwidth.


Youtube Kodi v6

For Kodi 18 Leia, version 6 of the addon, it has the following improvements:

  • Python 3 compatibility
  • Ability to rate video right after watching
  • Configure API keys from a web browser within Kodi
  • New play route features for channel live streams
  • Multi-user support
  • Optimized caching for improved addon speed
  • Added new playlists and folders to your account

The latest version of the Youtube 6 Kodi addon, v6.2.3 adds the following features:

  • Add ‘Next Page’ to ‘More…’ -> ‘Add to…’ context menu
  • Add icon and description to playlists in ‘More…’ -> ‘Add to…’ context menu in Kodi 17+
  • Add ‘Play audio only’ context menu option
  • Fix generated dash with no supported video streams being played when Audio only not enabled
  • Fixed potential Runtime Error when retrieving total time of playing content
  • Updated language strings


How to Install Youtube Kodi Addon Guide (official version)

  1. From the home screen, select Add-ons > Add-on Browser
  2. Select Install from Repository > Kodi Addon repository > Video Add-ons > Youtube > Install
  3. Wait for Add-on enabled notification

If you’ve never manually installed the Youtube addon by yourself and are worried that some addons aren’t working because of that – don’t worry! Youtube is also a major dependency that is automatically installed by an addon that needs it. Addons that call on the Youtube API  automatically perform these actions behind the scenes. You only need to install the Youtube Kodi addon if you want to directly use its functionality within Kodi.


How to Install Youtube Kodi Addon Guide (unofficial alpha version)

  1. From the Kodi main menu, navigate to SYSTEM > File Manager > Add Source > None
  2. Type the following EXACTLY and select Done
  3. Highlight the box underneath and enter a name for this media Source like “.neu”. and then click OK
  4. Go back to your home screen.
    • ON Kodi 17 Krypton or later: Select Add-ons > Add-on Browser
    • ON Kodi 16 or earlier: Select SYSTEM > Add-Ons
  5. Select Install from Zip File > “.neu” > and wait for the Add-on enabled notification
  6. Select Install from Repository > Kodi Neu Erleben repository > Video Add-ons > Youtube > Install
  7. Wait for Add-on enabled notification


Youtube Kodi Addons

The following addons use Youtube to pull live and static content. Click on each one to view installation instructions for each.

Live Tube
It is a lesser known fact that Youtube offers a ton of free live IPTV channels and content worth check out. From sports to video games to world news and entertainment, there are hundreds of live television stations to stream. The Live Tube Kodi addon takes all of those channels and puts them into an organized area for you to stream.

YouTube Vault
The YouTube Vault Kodi addon is a nice source for full movies and TV shows stored on YouTube and available to stream. The addon also contains music, news, sports, and other static content you can stream online in Kodi today.

Polaris pulls niche categories together into a single addon and most or all content is found directly from YouTube. From money saving ideas to karaoke to surfing to business ideas and sports replays, Polaris has a huge amount of unique content worth checking out today.

The FightTube Kodi addon is for those fans of mixed martial arts, boxing, and other combat sports. There are event replays, hype videos, interviews, historical documentaries, and other content loaded into FightTube and ready to stream today.

MP3 Streams
Nearly every single song and music video created can be found on YouTube. The MP3 Streams Kodi addon pulls metadata from the Billboard website and then redirects its search queries back to Youtube to play nearly every song in the entire world.

FDJ.HD from FrenchDJ is a massive Youtube addon focusing mostly on music content, concerts, setlists, and playlists in the EDM, techno, rap, rock, metal, alternative, and indie styles. As well, it has some other niche content such as documentaries, magic, stunts, and more. It is well organized with a ton of fully HD streams to check out.

Caught on Cam
The Caught on Cam addon has hidden camera and caught on camera content. It features embarrassing videos, pranks, and other popular Youtube Kodi channels. There is also a really good commercials area to check out as well.

If you like guns and survival content, then Grit is an addon you’ll want to check out. It features gun reviews, tips, historical content, how-to guides and other media for the alpha man.

What is your favourite Youtube Kodi addon? Let us know on Twitter or Facebook what you think!

How to install YouTube on Kodi Fire TV Stick

YouTube is one of the most popular addons for Fire Stick. If you want to install YouTube directly on Fire TV Stick, you need to install ES File Explorer, and a zip file will also need to be installed. Follow these steps to install YouTube on Kodi Fire TV Stick:

  1. From the Home Screen of your Fire Stick, choose Settings > System > Select Developer Option > Turn On the applicable apps from any unknown sources.
  2. A pop-up box will declare a warning and choose OK.
  3. Follow the same steps mentioned above in this guide with the sub-heading “How to install YouTube Kodi Addon Guide (Official Version).”

If you face errors, like there isn’t any stream available, you can quickly fix it with the Best VPN for Kodi.

How to update YouTube on Kodi

Usually, Kodi addons are updated automatically. If you need to do a manual update to, follow these steps to update YouTube on Kodi:

  1. Hover over to the Addons tab, and from there, Video addons.
  2. Right-click on the YouTube add-on and hover on Information.
  3. Select Update and choose the latest version that is available.

How to Uninstall YouTube Addon on Kodi

Uninstall the Kodi Youtube addon by following these three steps:

  1. From the main menu, click on the Addons tab and then on Video Addons.
  2. Right-click the YouTube addon and click on Information.
  3. Now select Uninstall > Yes > Yes.

How to Enable HD Videos in Youtube Kodi Addon

To enable the playback of HD videos in the Youtube addon, you MUST have InputStream Adaptive enabled. To do that:

  1. From the Kodi main menu, navigate to Add-ons > My Add-ons > VideoPlayer InputStream
  2. Click on InputStream Adapative and then select Enable.
  3. Select RTMP Input and then select Enable.


How to Setup Personal Youtube API Key

The Youtube Kodi addon is configured with a public API key and on occasion, you may have seen a “quota exceeded” error in Kodi. This means that too many people have used the public API key in the day and you are prevented from streaming on YouTube for the rest of the day.

To fix this quota exceeded Kodi error, you can setup a personal Youtube API key using the instructions below.

  1. Click HERE to visit the Google Cloud Console. Select your email preference (Yes or No, it does not matter). Select Yes to agree to the Terms of Service. Click Agree and Continue.
  2. Select Project > Create Project > Enter Project Name (the name does not matter) > Create. Wait until the next page loads with the the New Project that you just created.

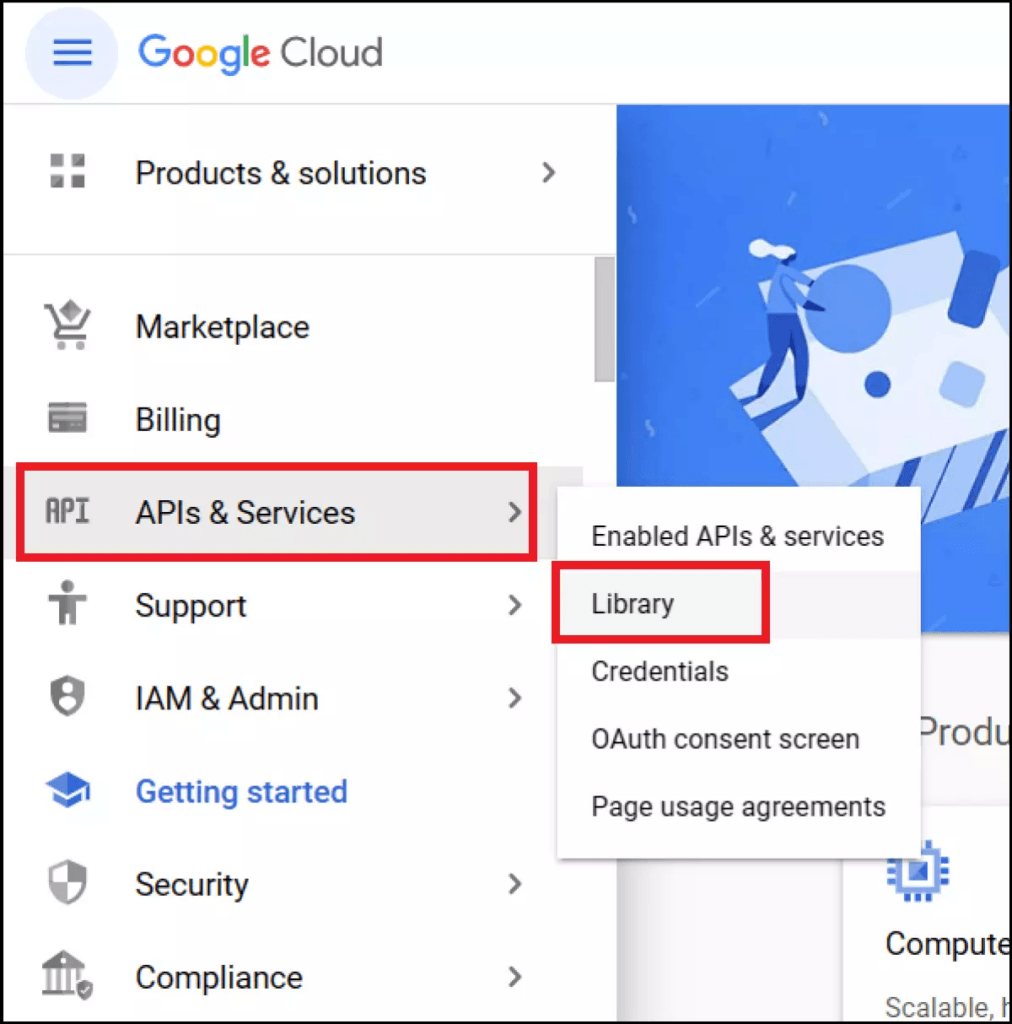

  3. Click HERE to visit the Google API Library Area. Go to YouTube APIs > Select YouTube Data API v3 > Enable.
  4. Click HERE to visit the Google API Credentials Area. Select Create Credentials > API Key.
  5. Under Which API are you using?  select YouTube Data API v3.
  6. Select the dropdown under Where will you be calling the API from and select Web Server.
  7. Under What data will you be accessing check Public Data.
  8. Click on What credentials do I need?
  9. Copy and Save the API key. You will need this later. DO NOT POST THIS PUBLICALLY. Click Done.
  10. Click on OAuth Consent Screen.
  11. Check the User Type of External and then click on Create.
  12. Give your application a name such as youtubeapi. Click on Save at the bottom of the page.
  13. Click on Credentials on the left side menu.
  14. Select Create Credentials > OAuth Client ID
  15. Select an Application Type of Other and give it a name of youtubeapi. Click on Create.
  16. Copy and Save the Client ID and the Client Secret. You will need these later. DO NOT POST THESE PUBLICALLY. Click OK.
  17. Back inside of Kodi, go to the YouTube addon > Settings > API > Click Enable Personal API Keys > Enter all 3 Keys > Click OK
  18. Then, Sign Out and after Sign In again (with the normal 2 x web activation). After a successful Sign In to the YouTube addon you should now be using the Personal API Keys that you created.

Let us know on social media if you need any help!
